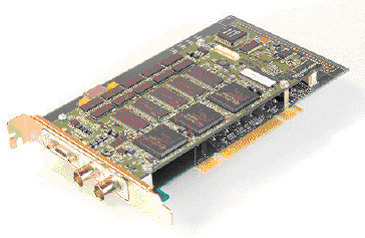

VMC-5400™提供高品質即時H.264/AVC/MPEG-4 Part 10壓縮編碼功能，採PCI設計，低CPU使用率，適用於Windows
2000/XP的作業環境
VMC-5400™採用多重DSP(數位信號處理器)架構，提供無比的靈活性，可升級能力及高量化能力的即時影像壓縮演算法
主要設計符合高標準要求的影音傳播應用環境，例如TELCO IP/TV解決方案

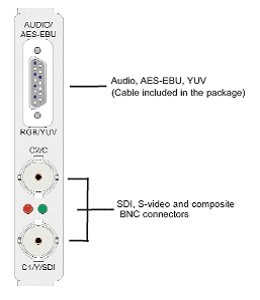

VMC-5400™提供下列影音輸入
-數位輸入：Video (SDI)和 Audio (embedded
SDI及Separate
AES / EBU)
-類比輸入：Video (YUV，RGB，S-Video，Composite)和Audio (balanced
and unbalanced stereo)
VMC-5400™支援MP＠L3影像解析度由QCIF至FD1(720X480X30fps或7207x576x25
fps)
，MPEG串流位元率可調整由64Kbit/s至10Mbit/s
VMC-5400™提供超強功能包括：
--CABAC (Powerful option
which achieves higher compression ratio)
--Pause/Resume
--Split mode (consecutive
frame accurate files generation of a defined length)
--Preview video on the host
screen
--Audiometer overlay
--Capture still image while
encoding
--Streaming option
VMC-5400™包含易學且能快速整合功能強大的SDK (Software
Development Kit) SDK依據Livewire架構設計。能完全配合您的應用需求
|
Inputs/
Outputs |
Video Formats |
NTSC/PAL |
|
Video Inputs：Analog |
YUV．RGB．S-Video．composite |
|
Video Inputs：Digital |
SDI |
|
Audio Inputs：Analog |
Analog balanced and unbalanced stereo |
|
Audio Inputs：Digital |
Digital Audio AES/EBU. embedded SDI |
|
Preview on VGA |
yes |
|
Video Encoding |
MPEG-4 AVC/H.264 |
FD1．3/4D1．2/3D1．HD1．CIF．QCIF |
|
AVC Profile |
MP＠L3 |
|
MUX Encapsulated in MPEG-2 TS |
yes |
|
Frame rate |
29.97(NTSC)
25(PAL) |
|
Bitrate MPEG-4 |
64 Kbit/s to 10 Mbit/s |
|
Bitrate regulation mode MPEG-4
AVC/H.264 |
CBR．VBR |
|
VBR with Fixed Quantizer |
yes |
|
GOP definition |
yes |
|
IBP distance settings |
yes |
|
Scene change detection |
yes |
|
Audio
Encoding |
AAC Low Complexity |
yes |
|
Bitrate AAC-LC |
6 to 448 Kbit/s(96 Kbit/s for CD quality) |
|
Audio Mode |
Stereo |
|
Signal
Calibration |
Brightness，Contrast，Saturation，
Hue Adjustments |
yes |
|
Audio Level Adjustment |
yes |
|
Still
Image |
Resolution |
720x576，352x288(PAL/S)
720X480，352X240(NTSC) |
|
Field or Frame(2
Fields) Capture |
yes |
|
Developers Resources |
Operating Systems |
Windows XP，2000 |
|
Development Kits |
Low level SDK/API
LiveWire framework
Demo application source code |
|
Advanced Features |
Audio deembedding from SDI |
yes |
|
Still image capture while
encoding |
yes |
|
Audiometer overlaid on preview |
yes |
|
Status overlay on preview
window |
yes |
|
Pause/Resume mode |
yes |
|
Split mode (back to back files) |
yes |
|
Deblocking fitter |
yes |
|
CABAC |
yes |
|
Adaptive noise fitter |
yes |
|
Minimum
Configuration
Recommended
Configuration |
>P3-800 MHz
256 MB RAM |
|
>P4-2GHz
512 MB RAM |
|
PCI
Compliance |
32 bits 33 MHz PCI rev2.3 compatible
with 5V and 3.3V(Automatic detection) |
|
